NeoCharge Smart Splitter
SELECT THE SMART SPLITTER TO FIT YOUR EXISTING 240V OUTLET:
Product Details

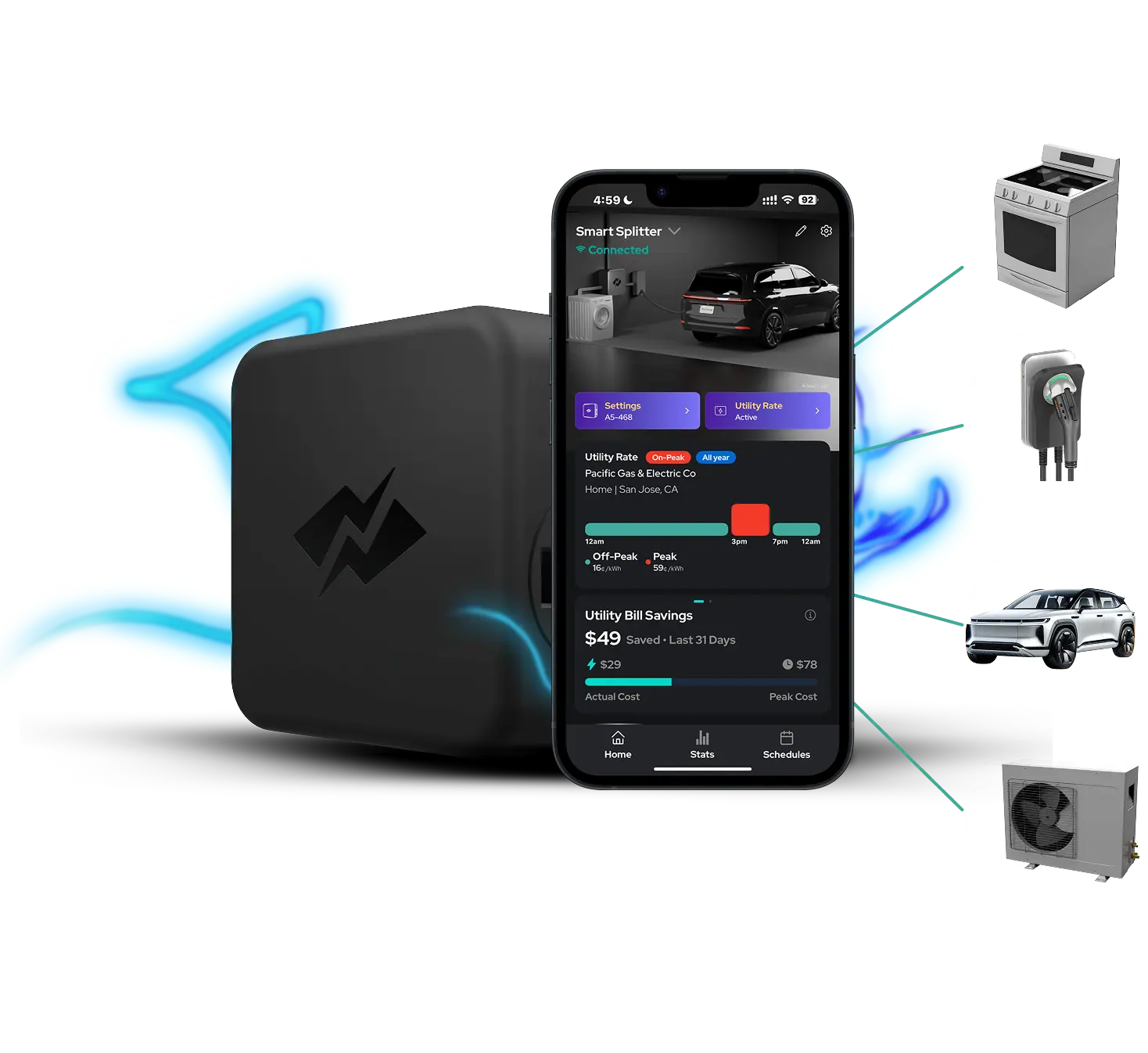

The Smart Splitter plugs into your existing 240V outlet for easy circuit sharing between your appliance and EV or two EVs. No installation needed.
- Unlock Smart EV charging optimization with the NeoCharge App.
- AVOID Expensive Panel Upgrades and Rewiring.
- SMART AUTO-SWITCHING, So You Don't Have To.
- UL Safety Certified.
- SELF Plug-In Installation.
- WiFi Enabled for Troubleshooting and Firmware Upgrades.
- Up to 7x FASTER Charging Access
- Track your home EV charging and energy costs.
Utility Rebates
The Smart Splitter is widely elligible for utility rebates across the US and Canada! We partner with utility companies to provide access to EV Charging and home electrification without the need for panel upgrades and rewiring.
Some of the utilities we work with include:
- PG&E
- BC Hydro
- SMUD
- ...and many more!
United States: Click Here to view applicable rebates and tax credits in your area using the Upfront Estimate.
Canada: The Smart Splitter is currently eligible for a $200 CND rebate through BC Hydro. Learn More.
We are constantly working to partner with more utilities and bring accessible charging to all areas across North America. Many more to come!
Shipping Policies: Free Shipping in US
United States: Smart Splitters are shipped out from our fulfillment centers located across the US. All domestic Smart Splitter purchases qualify for free 5-7 day shipping.
Canada: International shipments to Canada are subject to a $35 International Shipping Fee. Additional import duties such as the 5% GST and any provincial taxes will be assessed by the carrier during transportation.
3 Year Warranty
All Smart Splitters are covers by our 3 Year Warranty.
View full Warranty and Returns Policies here
Technical Specifications
FOR INDOOR USE ONLY
24 amp
- Output Power - 24A/5.7kW
- Input Voltage - 240 VAC nominal, single phase
- Input - NEMA 14-30P or NEMA 10-30P
- Output - 2x NEMA 14-30R or 2x NEMA 10-30R
- Dimensions - 5.25" x 5.25" x 2.8"
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA
40 amp
- Output Power - 40A/9.6kW
- Input Voltage - 240 VAC nominal, single phase
- Input - NEMA 14-50P, NEMA 10-50P, or NEMA 6-50P
- Output - 2x NEMA 14-50R, 2x NEMA 10-50R, or 2x NEMA 6-50R
- Dimensions - 5.25" x 5.25" x 2.8"
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA
The Smart Splitter plugs into your existing 240V outlet for easy circuit sharing between your appliance and EV or two EVs. No installation needed.
- Unlock Smart EV charging optimization with the NeoCharge App.
- AVOID Expensive Panel Upgrades and Rewiring.
- SMART AUTO-SWITCHING, So You Don't Have To.
- UL Safety Certified.
- SELF Plug-In Installation.
- WiFi Enabled for Troubleshooting and Firmware Upgrades.
- Up to 7x FASTER Charging Access
- Track your home EV charging and energy costs.
The Smart Splitter is widely elligible for utility rebates across the US and Canada! We partner with utility companies to provide access to EV Charging and home electrification without the need for panel upgrades and rewiring.
Some of the utilities we work with include:
- PG&E
- BC Hydro
- SMUD
- ...and many more!
United States: Click Here to view applicable rebates and tax credits in your area using the Upfront Estimate.
Canada: The Smart Splitter is currently eligible for a $200 CND rebate through BC Hydro. Learn More.
We are constantly working to partner with more utilities and bring accessible charging to all areas across North America. Many more to come!
United States: Smart Splitters are shipped out from our fulfillment centers located across the US. All domestic Smart Splitter purchases qualify for free 5-7 day shipping.
Canada: International shipments to Canada are subject to a $35 International Shipping Fee. Additional import duties such as the 5% GST and any provincial taxes will be assessed by the carrier during transportation.
All Smart Splitters are covers by our 3 Year Warranty.
View full Warranty and Returns Policies here
FOR INDOOR USE ONLY
24 amp
- Output Power - 24A/5.7kW
- Input Voltage - 240 VAC nominal, single phase
- Input - NEMA 14-30P or NEMA 10-30P
- Output - 2x NEMA 14-30R or 2x NEMA 10-30R
- Dimensions - 5.25" x 5.25" x 2.8"
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA
40 amp
- Output Power - 40A/9.6kW
- Input Voltage - 240 VAC nominal, single phase
- Input - NEMA 14-50P, NEMA 10-50P, or NEMA 6-50P
- Output - 2x NEMA 14-50R, 2x NEMA 10-50R, or 2x NEMA 6-50R
- Dimensions - 5.25" x 5.25" x 2.8"
- Weight - 2.5lbs
- Wifi - 2.4 gHz
- Manufactured - USA
Reduce your EV Charging costs by up to 70% with Smarter Home Charging
Unlock smart EV charging optimization with your exact utility rate. Integrates with 14+ EV brands and enables advanced energy tracking with your EVs and appliances. Get FREE Access Today!
Download Now
Track your EV Charging costs
Get Smart Charging and scheduling
Integrate your utility rate for more insights.
FAQ
What is the NeoCharge Smart Splitter and how does it work?

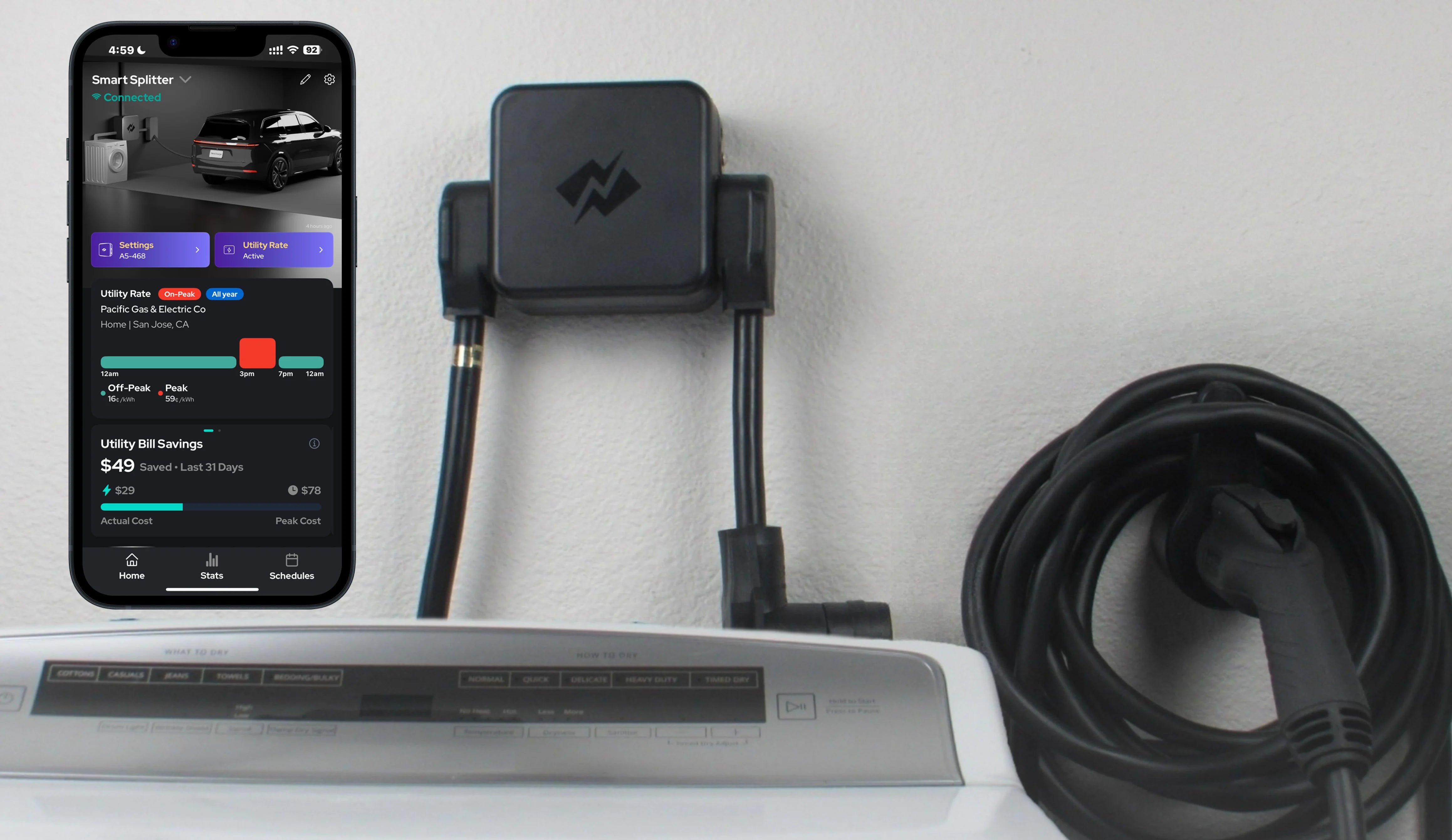

The NeoCharge Smart Splitter is a UL-listed, plug-and-play 240V outlet splitter that enables automatic switching between your dryer and EV charger, or between two EVs, using a single 240V outlet. It uses intelligent auto-switching technology to prioritize your dryer (or primary device) and automatically switches to EV charging when the dryer finishes, eliminating the need to manually swap plugs.
Is the NeoCharge Smart Splitter safe to use?
Yes, the Smart Splitter is UL safety certified by Underwriters Laboratories and NEC compliant, making it the only UL-listed smart splitter on the market. It features an internal software breaker and is designed to meet all North American electrical codes, ensuring safe operation with high-power appliances and EV chargers.
Which outlets are compatible with the Smart Splitter?
The Smart Splitter is available for these NEMA outlet types: NEMA 10-30, NEMA 14-30, NEMA 14-50, NEMA 10-50, and NEMA 6-50. These are the most common 240V outlets used for dryers, water heaters, and EV charging installations in North American homes.
How much money can I save compared to a traditional EV charging installation?
You can save $1,500-$4,800 compared to traditional electrical installations. The Smart Splitter costs $329, while typical electrical contractor quotes for new 240V circuits range from $2,500-$4,800, especially if panel upgrades are required. This makes the Smart Splitter a cost-effective alternative to expensive rewiring.
How long does installation take and do I need an electrician?
Installation typically takes less than 10 minutes and requires no electrician. The Smart Splitter is designed for self-installation - simply plug it into your existing 240V outlet and connect your appliances. No rewiring, panel upgrades, or electrical permits are needed.
How fast can I charge my EV with the Smart Splitter?
The Smart Splitter provides up to 7x faster charging compared to standard 120V outlets. When connected to a 240V outlet, you get Level 2 charging speeds (typically 25-40 miles of range per hour) versus Level 1 charging from standard outlets (3-5 miles of range per hour).
What smart features does the NeoCharge app provide?
The free NeoCharge app offers real-time energy monitoring, historical energy and cost tracking, scheduled charging to optimize energy usage, start/stop control for connected EVs, utility rate integration, and over-the-air firmware updates. The app can reduce EV charging costs by up to 70% through smart scheduling.
When you connect your EV, you can now optimize for your own solar energy with the NeoCharge app for additional savings up to $1,000 per year if you are on NEM 3.0 in California.
What warranty and support comes with the Smart Splitter?
The Smart Splitter includes a 3-year warranty, 60-day money-back guarantee, and US-based customer support. The company is based in California and provides responsive email support for troubleshooting and technical questions.
Can I charge two EVs simultaneously with the Smart Splitter?
Yes, you can charge two EVs simultaneously by setting both EV chargers to 20 amps or less (half power). For full-power charging, the Smart Splitter will automatically charge one EV at a time - fully charging the primary EV before switching to the secondary EV to prevent circuit breaker trips.
